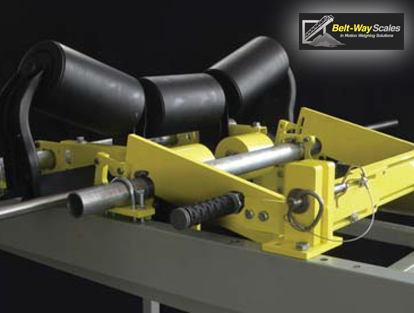

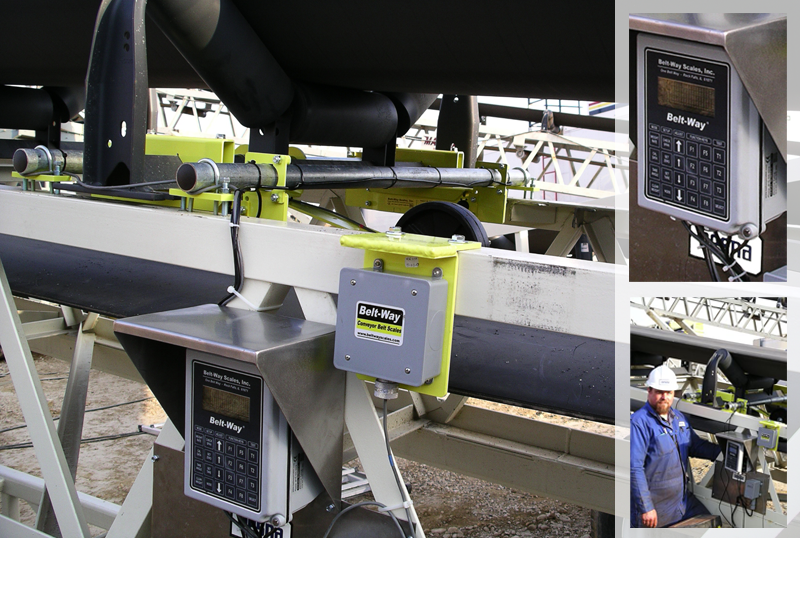

Belt-Way (SVS) Conveyor Scales Features

• SVS will work on any standard CEMA idler on any width conveyor.
• Simple installation in 6 – 8 hours, does not require removal of belt.
• For Stationary Conveyors, Mobile Conveyors, Stackers and Surge Bins. Available in mild steel or stainless steel.

Manufacturer Details

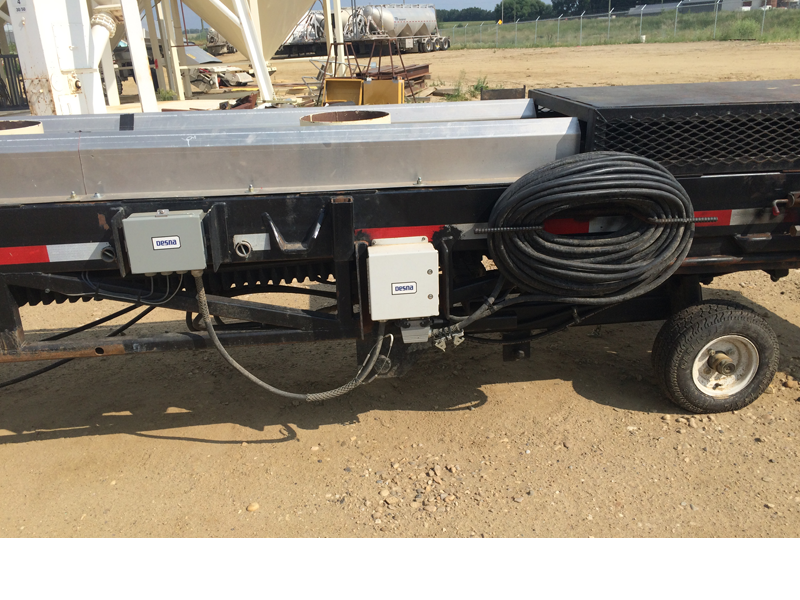

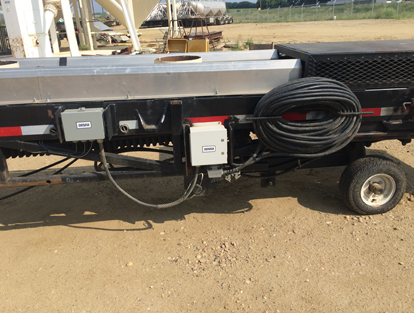

Portable Belt-Way Truck Scale Installation

Desna's installation of a portable conveyor SVS scale with extended control cable:

• Cables terminate in a Junction box equipped with multi-pin receptacle.
• Hard usage cable extends the scale conductors to an indicator in a control cab.
• Indicator can be unplugged and removed when not in use.
• Setup is quick, easy and connections are reliable even after multiple reconnections

Desna Installation: Portable Belt Scale,
TR TRUCKING, Rimbey, AB

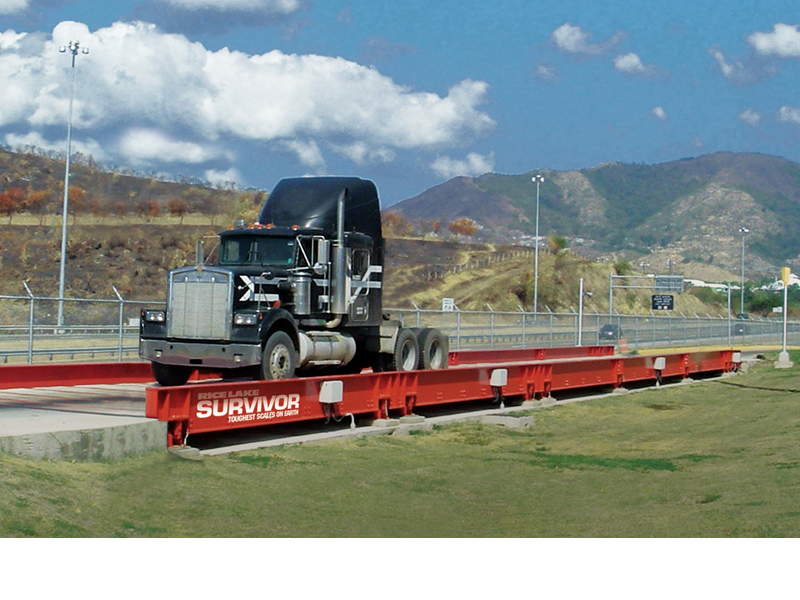

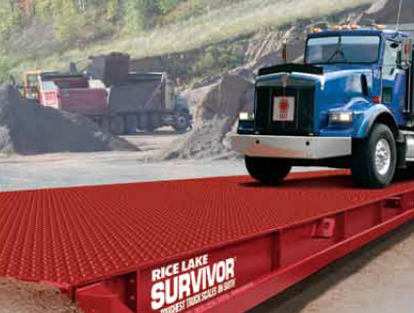

Portable Truck Scales Features

• Three standard widths: 10', 11', and 12' (available up to 14', NTEP-certified)
• 75,000 lb load cells and pre-assembled G-Force™ mounts
• Up to 270,000 lb full scale capacity
• Top access for electronics
• NTEP-certified, CC #02-003A1
• 90,000 lb Concentrated Load Capacity (CLC)
• 90,000 lb Dual Tandem Axle (DTA)
• Bolt-on backfill ramp bulkheads (removable for concrete approaches)
• End clean out
• 5-year weighbridge warranty
• Span deflection ratio (1:1100) for legal highway loads

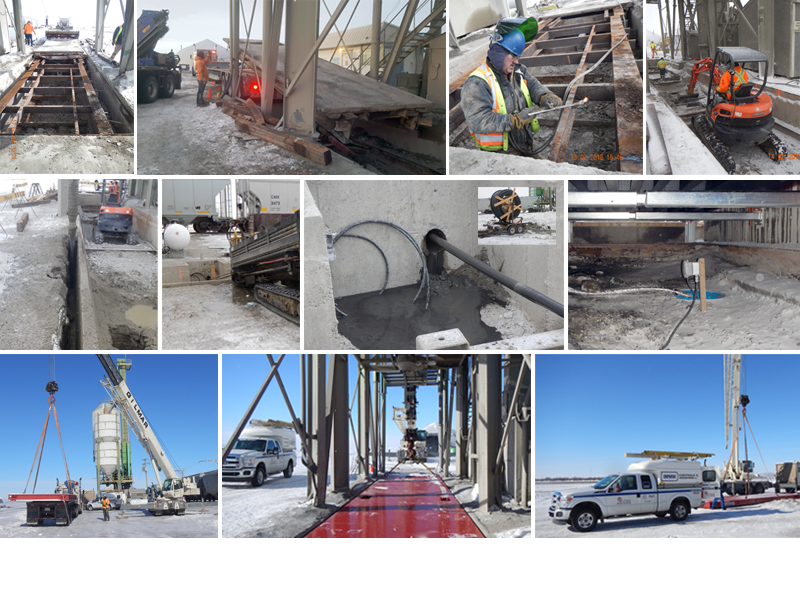

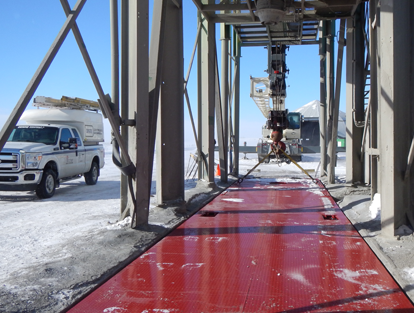

Scale Replacement at CRH Rail Terminal - Desna Installation

• Demolish existing deck and and clean out old scale pit
• Repair and strengthen retaining pit wall and remediate site
• Modify scale foundation to fit new scale deck loadcell layout
• Installation of new custom built 82' x 10' Rice Lake OTR Survivor Steel Deck Truck Scale
• Excavation and installation of drain sump pump to prevent future corrosion

CRH Testimonial

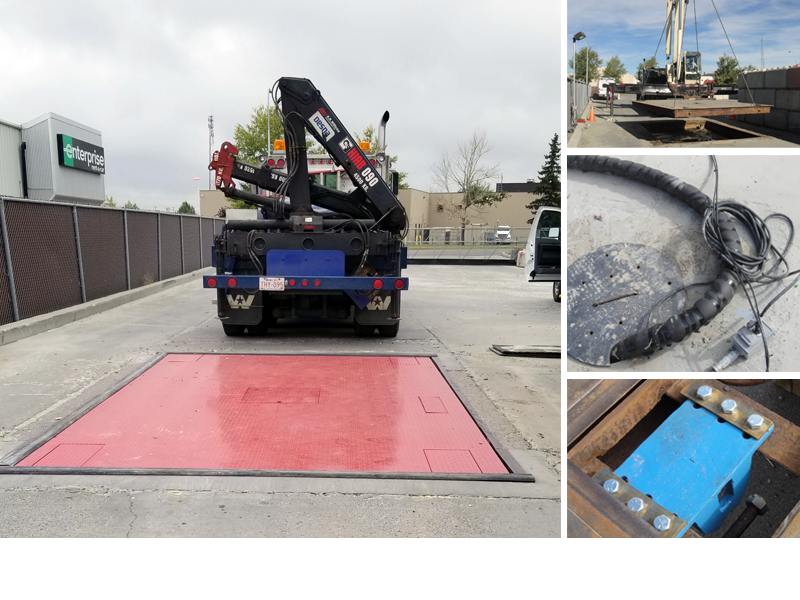

Pit Installed Axle Scale - Desna Installation

• Rebuild and installation of pit axle scale at glass crushing facility
• Complete rebuild of the load cell mounts
• Construction of approach retaining walls.
• Installation of drain sump.
• Installation of the drain required horizontal boring and installation of a 2″ sleeve.
• Heat trace and ¾″ drain line was routed from the scale pit to a storm sewer 120′ away.

Desna Installation:
Pit Axle Scale, Airdrie, AB

Permanent Pit and Above Ground Style Truck Scales Features

• Top access to load cells and junction box
• 75,000 lb capacity load cells and G-Force™ mount assemblies
• Junction box(es) appropriate for number of load cells utilized
• NTEP-certified, CC #02-003A1 90,000 lb Concentrated Load Capacity (CLC)
• 90,000 lb Dual Tandem Axle (DTA)
• Up to 270,000 lb full scale capacity
• Span deflection ratio (1:1100) for legal highway loads
• Three standard widths: 10', 11', and 12' (available up to 14', NTEP-certified)
